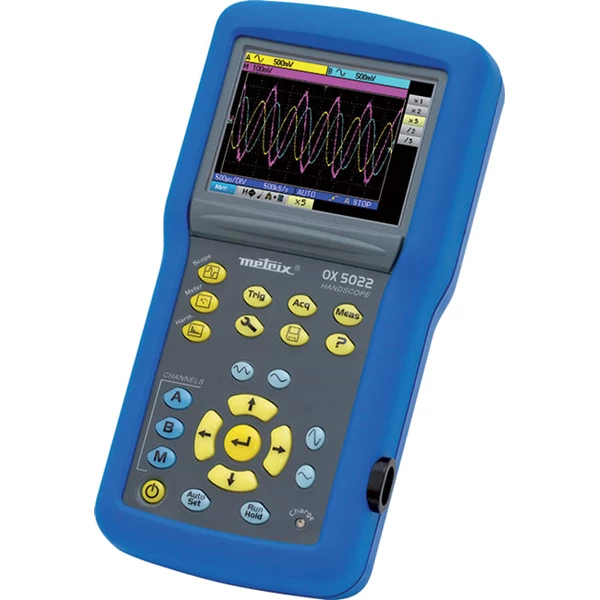

Handscope Portable Oscilloscope Model OX 5022 (2-Channel, 20MHz)
2 totally isolated channels
Three Instruments in One:
- 20MHz Oscilloscope
- Double 8000-count TRMS Multimeter / Power Analyzer
- Harmonic Analyzer
Recording Capacity
8-hour Battery Life
Integrated Multilingual Help Function
3.5" Color LCD Screen
OTHER FUNCTIONS
Math Functions Channel inversion,, +, -, x, / and (adjustable scaling)
Automatic Measurement 18 time, level, phase measurements
Multimeter Mode 2 channels, 8000 counts + Min and Max bargraph – TRMS – graphic recording of 2,700 measurements (5min to 31 days)
AC, DC, AC+DC Voltages 600mV to 600VRMS, 800mV to 800VDC: accuracy 2% R + 20cts Bandwidth 50kHz
Active Power and PF Single phase-Balanced 3 phase, with or without Neutral, simultaneous display of current
Resistance, temperature, capacitance, Frequency, speed rotation and diode test
HARMONIC ANALYZER MODE
Multi-Channel Analysis 2 channels, 31 orders, fundamental from 40 to 450Hz
GENERAL FEATURES
Interface Isolated USB, SX-Metro software included
Batteries 6 LR6 or 6 AA Rechargeable 9.6V NiMH battery pack, External charger
Charging Time External power adapter, 98 to 264VAC (50/60Hz) 2hrs 30min when OFF
Battery life Up to 8hrs 30min
Dimensions (L x W x H) 8.43 x 4.33 x 2.24” (214 x 110 x 57mm)
Weight 2.65 lbs (1.2kg)
Altitude Operating 2000m (6560ft)
Operating Temperature 32° to 104°F (0° to 40°C) ≤80% RH
Storage Temperature -4° to 140°F (-20° to 60°C)
IP Rating IP54 per IEC 60529
Safety IEC/EN 61010-1 (1000V CAT II; 600V CAT III), IEC 1326-1
Tech Specs
Oscilloscopes/Portable Oscilloscopes Template
Bandwidth 20 MHz
Channels 2
Sampling Rate 2 GS/S (2000 MS/S)
Screen Type (Oscilloscopes) TFT/LCD
Isolated Inputs Yes
Screen Size 3.5 IN
Bits 9
Color Screen Yes
Rise Time 0.9 ns
Memory 2 MB (2048 kB)
